Containerized parallel module

Aerogasol AG1000Q4WCP13B

The same Weichai WP13 four-unit container fitted with Leroy-Somer TAL-A46-F alternators for worldwide parts availability. Automatic synchronization, −40 °C cold start and roof-mounted copper cooling for continuous 24/7 duty.

Request project quote Technical specifications

Continuous power (COP)800 kWPrime power (PRP) 1,000 kW · 4 × 200 kW continuous / 4 × 250 kW prime

Catalogue price¥1,380,000Catalogue price, incl. VAT, EXW / FCA works

Electrical efficiency35.1 %Gas consumption 0.286 Nm³/kWh

EngineWeichai4 × Weichai WP13D317E300NG

AlternatorLeroy-Somer TAL-A46-FSmartGen 9510

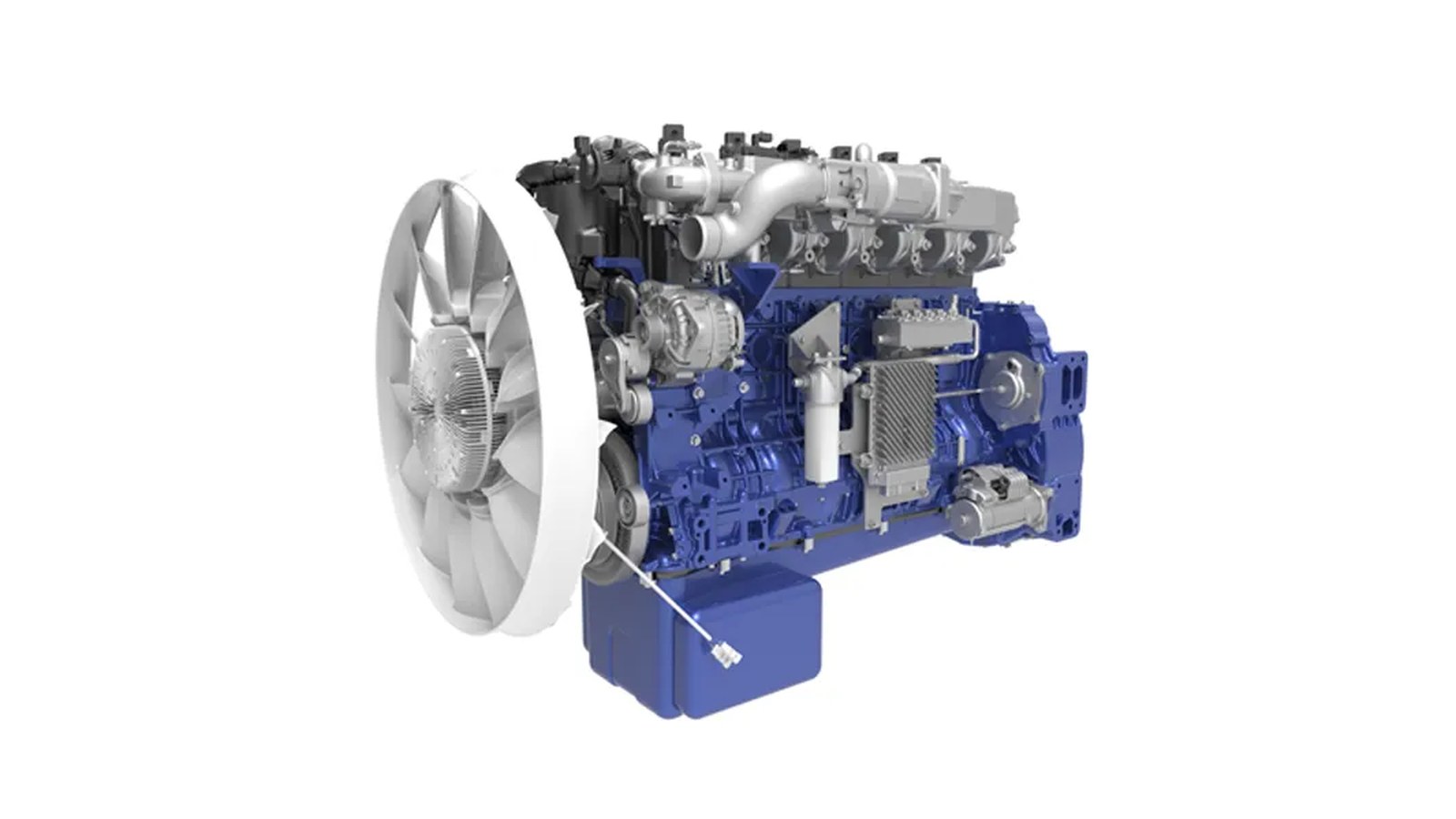

AG1000Q4WCP13B — Engine · Weichai WP13 natural-gas engine, 12.54 L in-line six (manufacturer image)

AG1000Q4WCP13B — Concept layout · four gas generator sets, roof-mounted radiators and common exhaust header in one 40 ft container

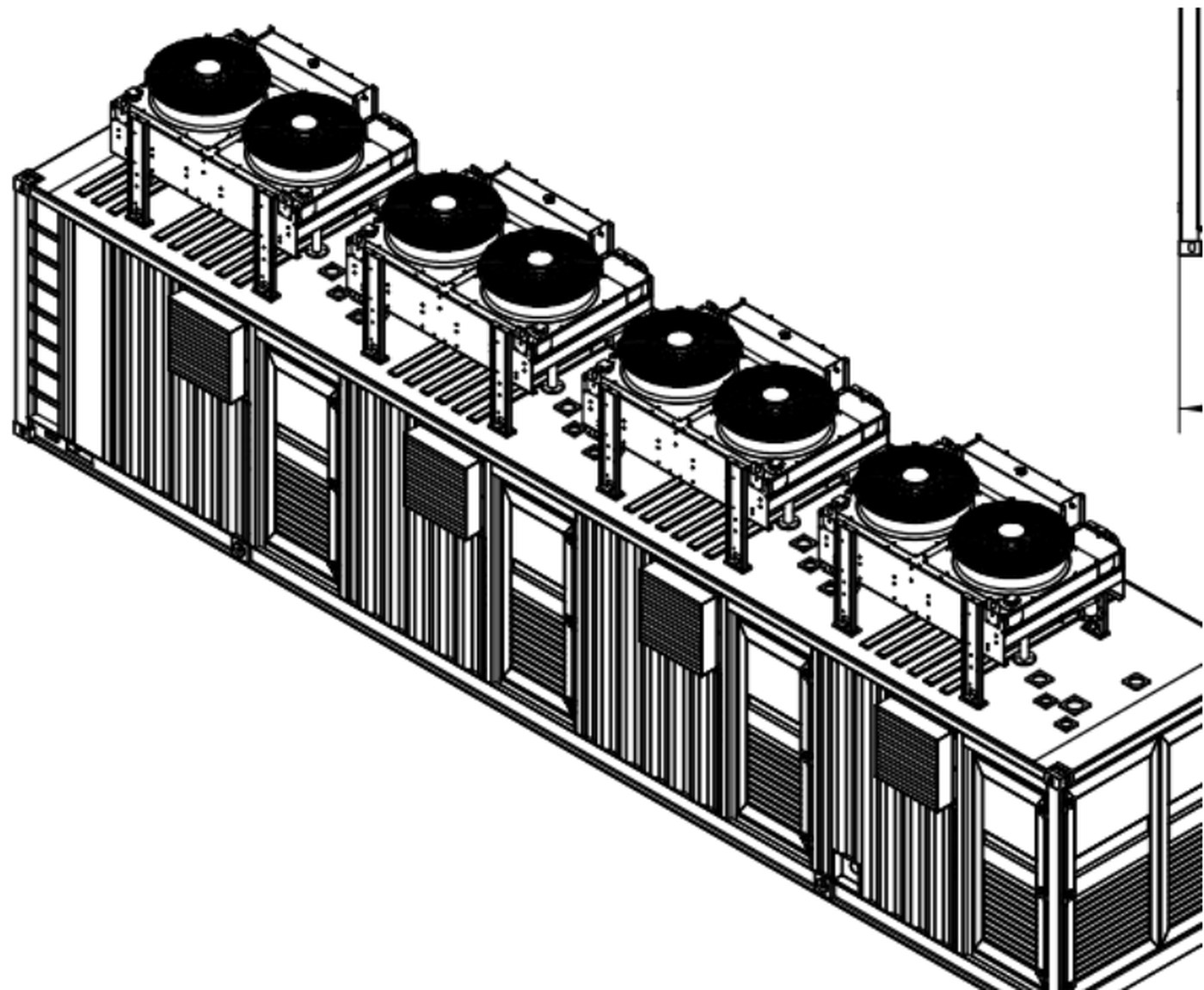

AG1000Q4WCP13B — Engineering drawing · container with roof radiators, side louvres and the control-cabinet bay

Technical specifications

Key selection data.

Ratings are stated under ISO 8528-1 / ISO 3046-1 reference conditions. Detailed electrical, gas and site-condition data are finalized in the project technical agreement.

Continuous power (COP)800 kW

Prime power (PRP)1,000 kW

Rated capacity1,000 kVA · 1,443 A

Voltage / frequency400 / 230 V · 50 Hz · 1,500 rpm

EngineWeichai WP13D317E300NG · 12.54 L · in-line 6

AlternatorLeroy-Somer TAL-A46-F · class H / IP23

Parallel controlSmartGen 9510 · Chint frame breakers

Gas supplyDN50 · 50 kPa · CH₄ ≥ 80 % · MN ≥ 70

Gas consumption229 Nm³/h at 800 kW

Container40 ft · 12 192 × 2438 × 2591 mm · ≈ 20.8 t with roof radiators

Ambient−40 to +45 °C · altitude ≤ 1,300 m

Noise≤ 95 dB(A) at 1 m

Scope of supply

Everything inside the container.

The catalogue price covers the complete containerized module, factory load-tested and certified. Transport and site works are quoted per project.

INCLUDED

Container package

Gas engines4 × Weichai WP13D317E300NG
Alternators4 × Leroy-Somer TAL-A46-F, brushless, class H / IP23
Base framesSteel base frames with high-elasticity rubber mounts
Starting system24 V electric start, 2 × 200 Ah maintenance-free batteries per unit
Gas trainPer unit: DN50 regulator, emergency-shutdown solenoid valve, flame arrester, filter and gauges
Cooling4 roof-mounted copper radiators with driven fans; hot air does not recirculate into the container
Cold-start packageJacket-water heater 4 kW / 220 V and oil heater per unit for −40 °C starting
ExhaustIndustrial silencer and stack per unit with spark-arrestor cap
Parallel switchgear4 parallel cabinets with SmartGen 9510 controllers, copper busbar and Chint intelligent frame breakers; automatic synchronization of all four units
Multi-unit monitoringLocal monitoring screen via RS485 / Ethernet: electrical data, engine parameters, alarms and run records
Container40 ft ISO container, insulated and acoustically lined, with louvres and service doors
Gas safetyGas leak detectors, explosion-proof lighting, emergency lighting
Factory testFull-load test of every unit before dispatch; test gas included
DocumentationOperation and maintenance manuals (CN / RU), factory test report, EAC certificate of conformity
Spares and toolsAir filter, oil filter and spark plugs per unit; special tool kit

NOT INCLUDED / OPTIONAL

Quoted per project

Freight and insuranceFrom the works to the destination; quoted per project
Destination chargesPort, customs and inland transport at destination
Site installationFoundation, gas and electrical connection, on-site commissioning
Remote monitoring4G / Ethernet gateway and cloud dashboard
Service packagesExtended warranty, spare-parts kits for 4,000 h and 8,000 h

Commercial terms

Price, delivery, warranty.

Catalogue terms for a single container. Project quotations cover quantity, destination and site scope.

Catalogue price¥1,380,000 incl. VAT, EXW / FCA works

Delivery60 days after receipt of advance payment

Payment30 % advance, balance before shipment

Warranty12 months or 4,000 running hours, whichever comes first

CertificationRussian EAC certification arranged by the seller

SupportFree remote video guidance for installation and commissioning; 24 h technical response; parts supply

Need project customization?

Match the package
to your gas and load.

Send the gas composition, required output, operating hours, site climate and grid arrangement. Aerogasol will return a configuration basis for discussion.

Contact engineering

* Values marked with an asterisk are derived from nominal platform data and are not a performance guarantee. Container ratings are stated at continuous power; final ratings depend on gas composition, ambient temperature, altitude, frequency, emissions package and project duty. Catalogue prices are EXW / FCA works, incl. VAT, and exclude freight, insurance, destination charges, import duties and site installation.
